U-Tube vs. Straight Tube Bundles: Which Heat Exchanger Bundle Is Right for You?

When it comes to designing a heat exchanger, choosing between a U-tube and a straight tube bundle can make all the difference in performance, maintenance, and cost. Both designs have distinct advantages depending on the application. Here, we’ll break down the key differences and help you determine which configuration is best for your system.

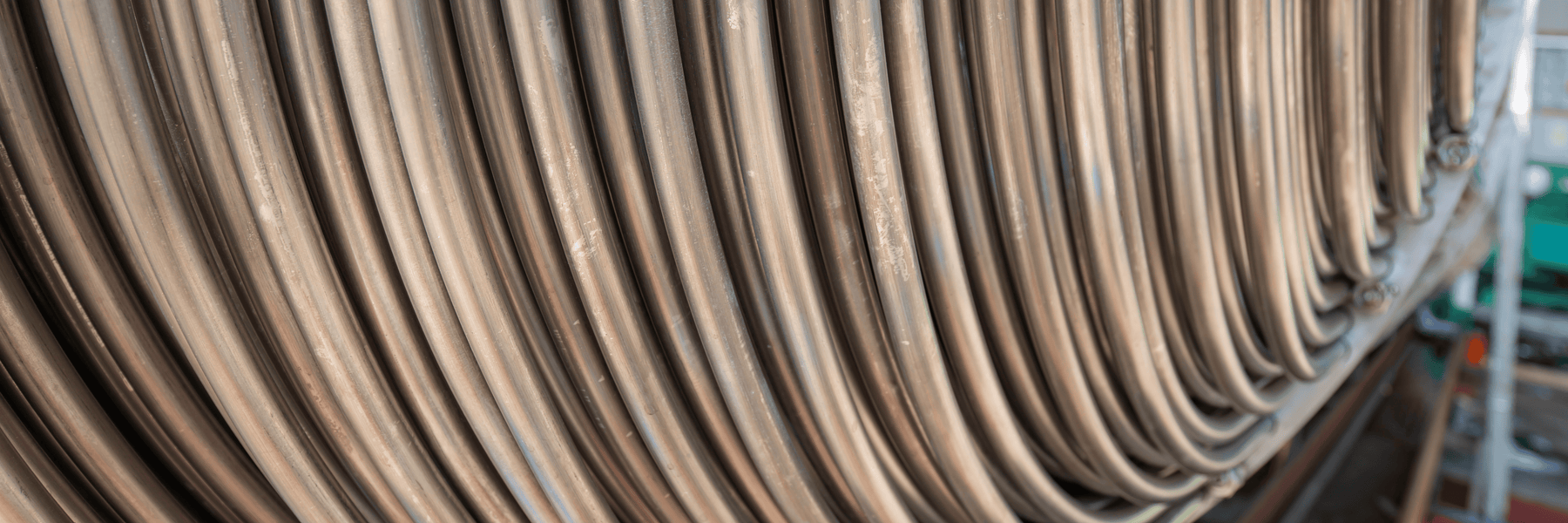

U-Tube Bundles

U-tube bundles feature a continuous tube that bends at one end, forming a U-shape. The U-shaped end is not attached to any other internal component, meaning it “floats” within the heat exchanger. These two design features offer many benefits.

Key Advantages of U-Tube Bundles:

They are Thermal Expansion Friendly: The U-bend design naturally accommodates thermal expansion between the shell and tubes (in other words, because one side isn’t fixed to anything, the tubes are free to expand and contract). This helps the system handle sudden changes in temperature without suffering from thermal-shock damage.

They Allow for Efficient Heat Transfer in Tight Spaces: The U-shape allows for more tube length in the same horizontal footprint by folding the tubes back on themselves. This increases the heat transfer surface area without increasing the overall exchanger size, meaning a small U-tube bundle will still offer a high thermal output.

Simple Repairs: A single leaking or damaged tube can be individually removed and replaced without needing a full re-tube — significantly reducing downtime and cost.

Easy to Replace: Finally, one of their biggest benefits is that U-tube bundles are easy to replace. A full tube-bundle replacement is necessary when you're dealing with multiple leaks, severe wear, structural damage, or overall performance issues. When you’re dealing with these problems, simply replacing the tube bundle can save you tens of thousands in unnecessary costs and dramatically reduce downtime. Why is that?

First, some people immediately jump to replace their entire heat exchanger when the above problems arise. The truth is, heat exchanger shells can last a lifetime (or longer). If the shell isn’t showing signs of pitting, thinning, cracks, or deformation, it is often unnecessary to replace it. You can repair and restore your unit’s performance by replacing only the tube bundle, which usually costs about 40% less than replacing the entire heat exchanger.

Second, in general, a replacement tube bundle can be fabricated, shipped, and installed faster than a whole heat exchanger. In emergencies, tube bundles can often be fabricated and shipped in as little as 24-48 hours, and installation is as simple as unbolting the old tube bundle from the tube sheet, sliding it out, and inserting the new tube bundle. Whereas whole heat exchangers, on average, take 6-8 weeks to build and ship, and require a longer, more labor-intensive installation.

A Common Application for U-Tube Bundles: HVAC systems

U-tube designs are a common choice for commercial HVAC systems, where temperature fluctuations and problems related to thermal shock are common. HVAC systems are also usually located in tight mechanical spaces, so a U-tube design allows companies to get the thermal output they need without knocking out a wall to accommodate for their size.

Straight Tube Bundles

Straight tube bundles feature a linear tube layout, and they come in either fixed head or floating head designs. In fixed head designs, both ends of the tube bundle are permanently attached (fixed) to the tube sheets, which are welded or bolted to the shell. In floating head designs, just like in U-tube designs, one end of the tube bundle is fixed, while the other end is free to “float.”

Key Advantages of Straight Tube Bundles:

• Handles Higher Flow Velocities: Straight tubes allow fluid to move in a direct line from one end to the other without sharp turns, meaning there’s less turbulence and pressure loss, enabling smoother, faster fluid movement.
• Larger Effective Flow Area: Many straight tube bundles can accommodate wider flow channels or multi-pass designs, so more fluid can move through them at a given time.
• Easier Debris Handling: In dirty or high-fouling applications, straight tubes reduce the chance of clogging and make it easier to mechanically clean and flush out solids or scale. This is especially beneficial when pumping high-viscosity fluids or slurries.
• Leak-Resistant: Only the tube-side fluids contact gaskets. Plus, the tubes usually have no packed joints to worry about. This means there are fewer potential points of failure in these systems. Fixed head designs are also less vulnerable to leaks from vibrations since both ends of the bundle are supported.

A Common Application for Straight Tube Bundles: Manufacturing Plants

Repairs on straight tube bundles are typically more involved and expensive, and for fixed head designs, replacements are not an option. Nevertheless, straight tube designs are the preferred choice in industrial process and manufacturing systems where frequent cleaning and high flow rates are priorities. This includes chemical plants, oil refineries, pulp and paper mills, and food & beverage processing plants.

Final Thoughts

Choosing the right tube bundle depends on your system's needs—whether that’s resistance to thermal shock, ease of repair, or optimized flow and cleaning access.

Need help finding the right tube bundle for your system? Contact our sales engineers today to get a quote or discuss your specific needs.
