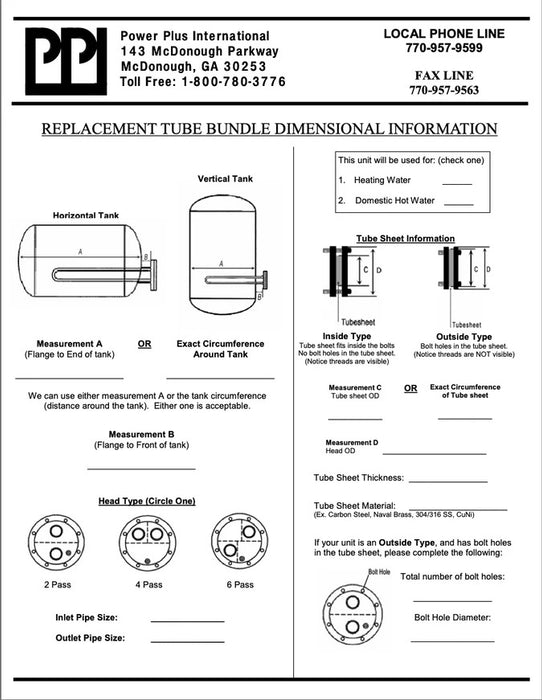

Tank Bundle Sizing with Storage Tank
HOTSHOT SHIPPING AVAILABLE
If you need your bundle delivered as soon as possible, call 770-957-9599 to set up *HOTSHOT* shipping.

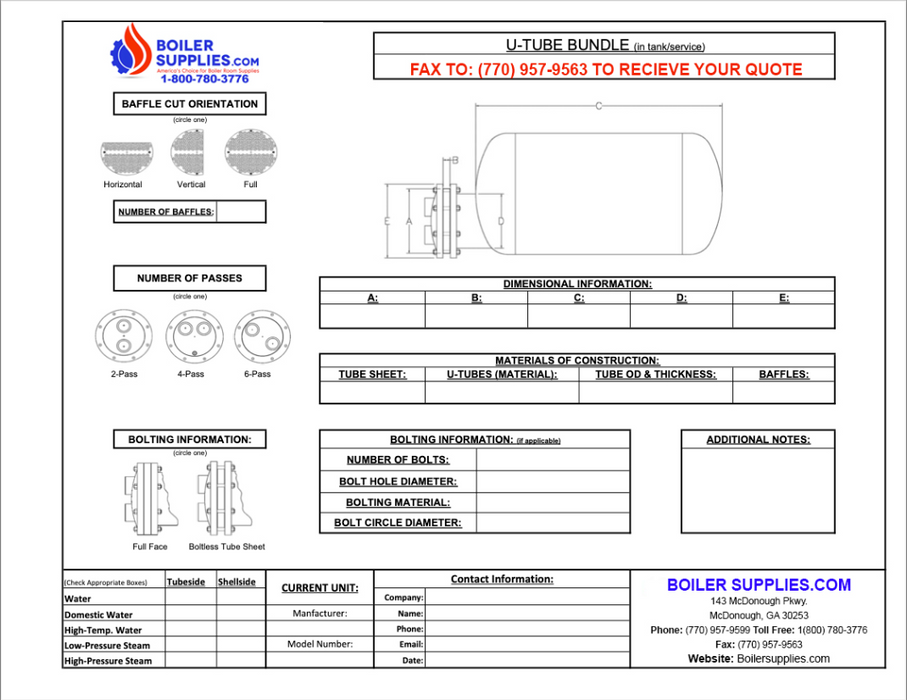

Tank Heaters - are U Tube type bundle construction. A fluid in the tank is heated by a fluid or steam circulated through the tubes through natural convection in the tank.
*This construction provides for expansion or contraction of the bundle over a wide range of temperature variations. Available in single and in double wall tube construction. -
Collar Fabricated Carbon Steel with Stainless options Tube sheets Fabricated Carbon Steel with Stainless, 90/10 CuNi and Brass options Tubes Copper with option for Stainless Steel, 90/10 or 70/30 Bonnets Cast Iron with Cast Stainless Steel 316 and Cast Bronze options Bolting Carbon Steel.
Tube Side: - 4” thru 8” Dia. 150 PSI 10” thru 14” Dia. 125 PSI 375-ºF
Tank Side: 150 PSI 375-ºF
Delivery time
By choosing from the options above, you are selecting the build time of your bundle. At checkout, you will select your shipping method and time. Transit times are based on our third-party vendors such as Fedex & UPS. Once picked up from the carrier, we will work tirelessly with our vendors to ensure customer success.
