Wils-Away™ 520 Electric Tube Cleaner: Heavy-Duty Cleaning for 3.75″ to 1.5″ OD Tubes

When soot and scale build up inside heat exchanger tubes, efficiency drops and energy costs rise. The Wils-Away™ 520 gives maintenance crews a safe way to clear light & medium soft deposits to keep systems running well.

Why Crews Choose the WAW 520

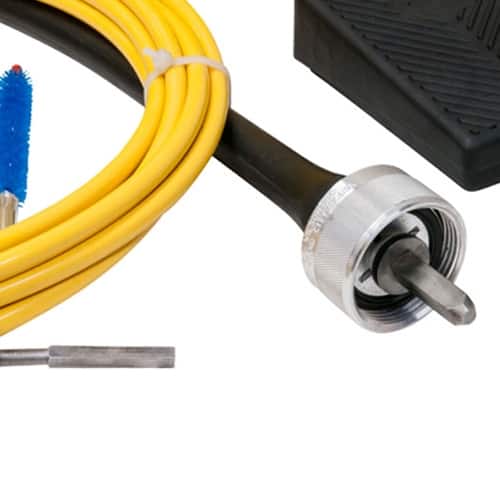

It's built to last. Each shaft has steel inner construction, a brazed fitting, and a nylon outer casing, so it holds up to repeated, heavy-duty cleaning jobs. Every kit also includes a spare safety shaft coupling, so you can keep working with less downtime.

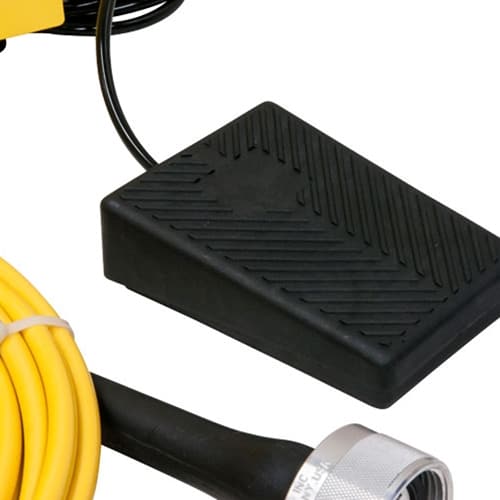

It's designed with safety in mind. The WAW 520 uses air switches instead of electrical controls at the operator's feet. A single press of the air pedal starts or stops the unit, which leaves both hands free to guide the shaft.

It works wet or dry, in straight or curved tubes. You can run it with water flushing or completely dry, and the flexible shaft follows curved tube runs as well as straight ones.

It's portable. At 35 lbs with a toolbox-style closure, the drive unit is easy to carry from one unit to the next.

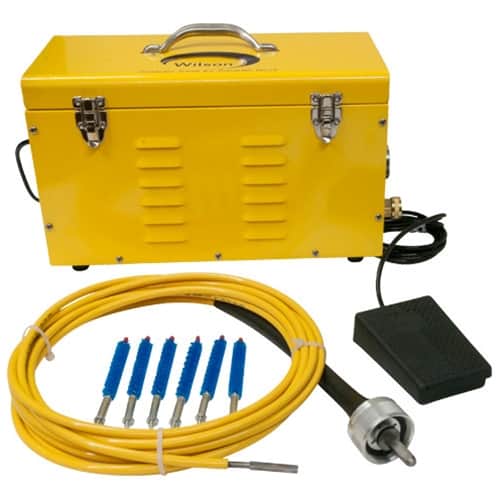

What's in the Kit

• 1 electric drive unit - 1,725 rpm; 1/2 HP
• 1 single-direction air foot pedal
• 1 spare safety shaft coupling
• 25 ft flexible shaft and casing
• 6 spiral brushes - made of silicon carbide-impregnated nylon for longer life

Where to Use It

The WAW 520 removes light to medium soft deposits from tubes in:

• Heat exchangers
• Condensers
• Chillers
• Absorbers
• Water heaters
• Coolers
• Other pressure vessels
